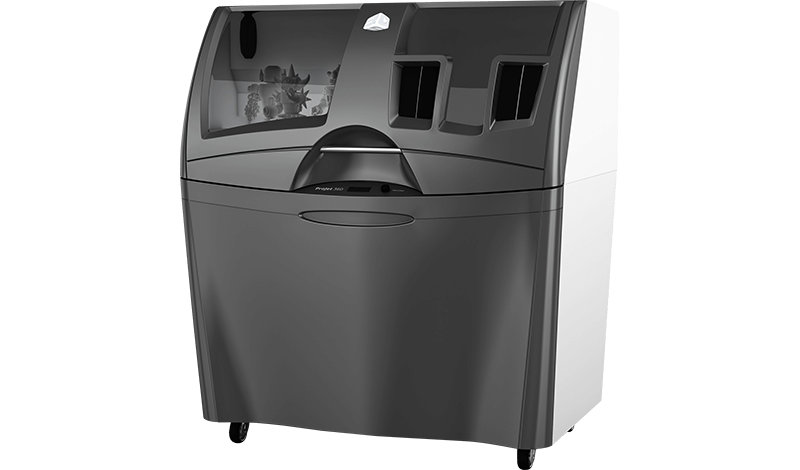

ProJet 360
Tehnični podatki
Key Features
Maximum build envelope capacity: 203mm (W) x 254mm (D) x 203 mm (H)
White monochrome
Resolution: 300 x 450 dpi
Podrobne specifikacije
Tiskalnik
Ločljivost
300 x 450 DPI
Barvno
White (monochrome)
Pastel or vibrant color options
No
Number of Jets
304
Number of Print Heads
1
Minimum Feature Size
0.03 inches (0.8 mm)
Layer Thickness
0.004 inches (0.1 mm)
Vertical Build Speed
0.8 inch/hour (20mm/hour)
Prototypes per Build*
18
Electrical
90-100V, 7.5A 110-120V, 5.5A 208-240V, 4.0A
Dimenzije (Š x G x V)
3D Printer Crated: 55 x 45 x 62 inches (140 x 114 x 158 cm)
3D Printer Uncrated: 48 x 31 x 55 inches (122 x 79 x 140 cm)
Noise
Building: 57 dB
Core Recovery: 66 dB
Vacuum (open): 86 dB
Fine Decoring: 80 dB
Teža
3D Printer Crated: 251 kg
3D Printer Uncrated: 179 kg
Automated Setup and Self Monitoring
Yes
Material Recycling
Yes
Automatic Build Platform Clearing
No
Part Cleaning
Intergrated
Intuitive Control Panel
Yes
Integrated Materials
Yes
Input Data File Formats Supported
STL, VRML, PLY, 3DS, FBX, ZPR
Client Operating System
Windows® 7 & Vista®
Temperaturni obseg delovanja
13-24 ºC
Obseg vlažnosti pri delovanju
20-55 % - non-cond.
Certifications
CE, CSA
Potrebščine
Build Materials
VisiJet PXL
